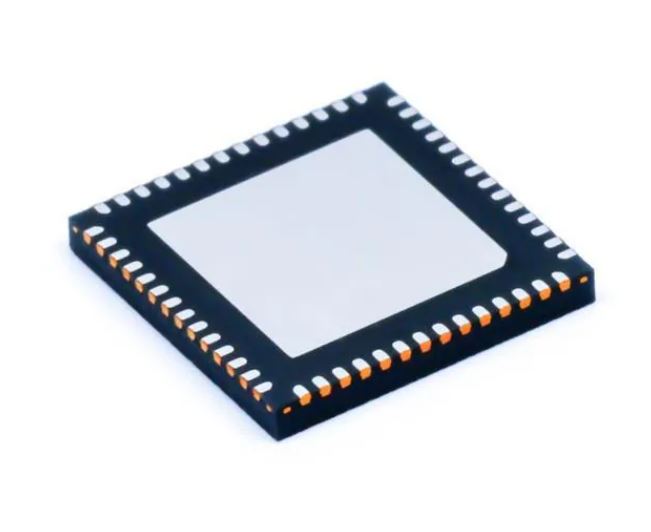

TLC5954RTQR LED照明驱动器
商品详情
| 制造商: | Texas Instruments | |
| 产品种类: | LED照明驱动器 | |
| RoHS: | 详细信息 | |
| 系列: | TLC5954 | |
| 安装风格: | SMD/SMT | |
| 封装 / 箱体: | QFN-56 | |
| 输出端数量: | 48 Output | |
| 输出电流: | 24.4 mA, 34.9 mA | |
| 输入电压（最小值）: | 3 V | |
| 输入电压（最大值）: | 3.6 V | |
| 拓扑结构: | Boost | |
| 工作频率: | 30 MHz | |
| 输出电压: | 10 V | |
| 最小工作温度: | - 40 C | |
| 最大工作温度: | + 85 C | |
| 封装: | Reel | |
| 封装: | Cut Tape | |
| 封装: | MouseReel | |
| 特点: | Constant Current, LED Open Detection, ON/OFF Control | |
| 商标: | Texas Instruments | |
| 高电平输出电流: | - 2 mA | |
| 输入电压: | 3 V to 3.6 V | |
| 低电平输出电流: | 2 mA | |
| 湿度敏感性: | Yes | |
| 通道数量: | 48 Channel | |
| 工作电源电压: | 3 V to 3.6 V | |
| 输出类型: | Constant Current | |
| 产品: | Constant Current Sink LED Drivers | |
| 产品类型: | LED Lighting Drivers | |
| 工厂包装数量: | 2000 | |
| 子类别: | Driver ICs | |
| 电源电流—最大值: | 25.5 mA | |
| 宽度: | 8.15 mm | |
| 单位重量: | 200 mg |
