辉锦电子推出顺芯: ES8311 单声道ADC-DAC音频编解码器
商品详情
顺芯推出ES8311/ES8312音频CODEC产品
专业设计高性能、低功耗、低成本的音频数模混合信号集成电路芯片。公司目前在中国上海、深圳和美国都有研发中心和业务中心。公司的核心团队是音频ADC、DAC、CODEC和CODEC+DSP领域的先驱者，积累了近30年的相关经验，其中包括近20年在美国深厚的技术及管理背景和10多年的中国市场耕耘。专注于研发高效的音频数模混合信号芯片ADC、DAC和CODEC产品。我们旨在提供业界最高性价比的高性能、高品质产品，同时提供客户最优化的全方位服务，立足大规模消费需求的中国市场，也服务大中华和全球市场和客户。顺芯产品涵盖众多应用，其中包括移动平板、二合一个人移动电脑、POS机、网络机顶盒OTT/STB、耳机（Lightning，USB Type C，Bluetooth，2.4GHz）、安防监控设备、行车记录仪、车载娱乐系统、音响音箱、语音遥控、机器人、游戏手柄、智能家居，声霸，HDMI和VGA接口转换、数字双向对讲等。
顺芯低功耗音频解码ES8311芯片！

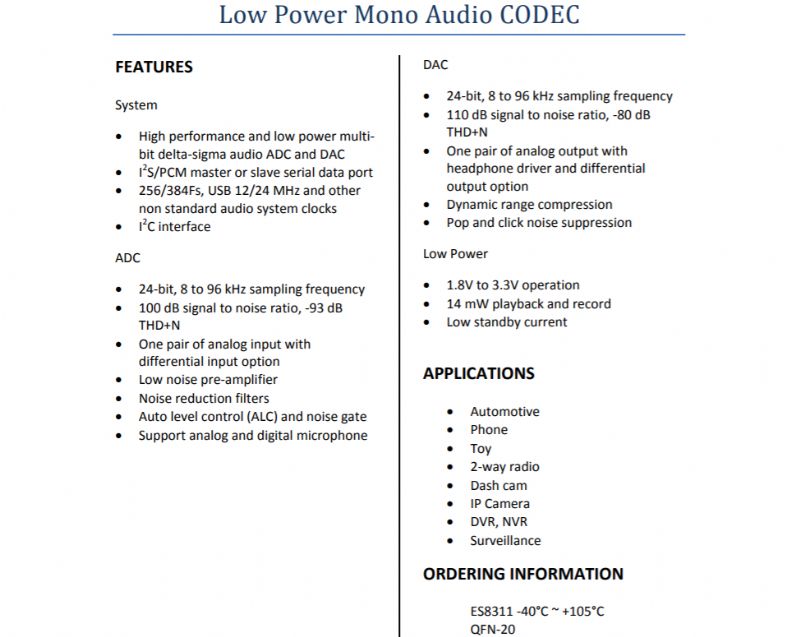

1：High performance and low power multibit delta-sigma audio ADC and DAC
2：I2S/PCM master or slave serial data port256/384Fs, USB 12/24 MHz and other non standard audio system clocks
3：I2C interface
ADC
24-bit, 8 to 96 kHz sampling frequency
100 dB signal to noise ratio, -93 dB
THD+N
One pair of analog input with
differential input option
Low noise pre-amplifier
Noise reduction filters
Auto level control (ALC) and noise gate
Support analog and digital microphone
DAC
24-bit, 8 to 96 kHz sampling frequency
110 dB signal to noise ratio, -80 dB
THD+N
One pair of analog output with
headphone driver and differential
output option
Dynamic range compression
Pop and click noise suppression
Low Power
1.8V to 3.3V operation
14 mW playback and record
Low standby current
APPLICATIONS
Automotive
Phone
Toy
2-way radio
Dash cam
IP Camera
DVR, NVR
Surveillance
ORDERING INFORMATION
ES8311 -40°C ~ +105°C
QFN-20
顺芯DAC系列：ES7134 ES7144 ES7145 ES7148 ES7149 ES7154 ES8155 ES8156
ADC系列：ES7210 ES7241 ES7242 ES7243 ES8218 ES8288
CODEC系列：ES8316 ES8323S ES8374 ES78388 ES8388S ES8396 ES8311 ES8312
1：High performance and low power multibit delta-sigma audio ADC and DAC
2：I2S/PCM master or slave serial data port256/384Fs, USB 12/24 MHz and other non standard audio system clocks
3：I2C interface
ADC
24-bit, 8 to 96 kHz sampling frequency
100 dB signal to noise ratio, -93 dB
THD+N
One pair of analog input with
differential input option
Low noise pre-amplifier
Noise reduction filters
Auto level control (ALC) and noise gate
Support analog and digital microphone
DAC
24-bit, 8 to 96 kHz sampling frequency
110 dB signal to noise ratio, -80 dB
THD+N
One pair of analog output with
headphone driver and differential
output option
Dynamic range compression
Pop and click noise suppression
Low Power
1.8V to 3.3V operation
14 mW playback and record
Low standby current
APPLICATIONS
Automotive
Phone
Toy
2-way radio
Dash cam
IP Camera
DVR, NVR
Surveillance
ORDERING INFORMATION
ES8311 -40°C ~ +105°C
QFN-20
顺芯DAC系列：ES7134 ES7144 ES7145 ES7148 ES7149 ES7154 ES8155 ES8156
ADC系列：ES7210 ES7241 ES7242 ES7243 ES8218 ES8288
CODEC系列：ES8316 ES8323S ES8374 ES78388 ES8388S ES8396 ES8311 ES8312

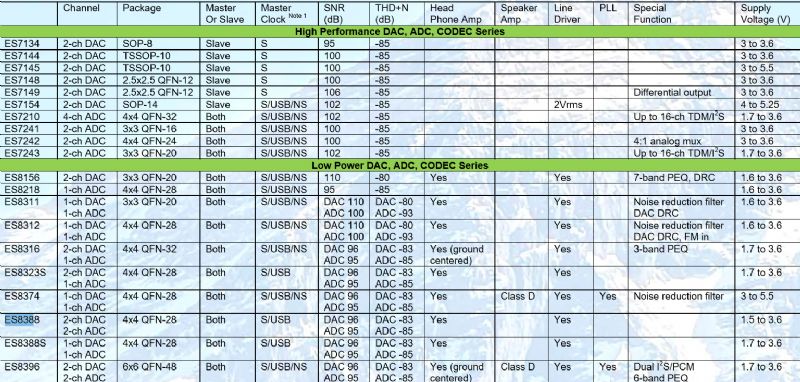

| ES7134 | EVEREST | SOP-8 | 顺芯低功耗音频CODEC |
| ES7145 | EVEREST | SSOP-10 | 顺芯低功耗音频CODEC |
| ES7144 | EVEREST | TSSOP-10 | 顺芯低功耗音频CODEC |
| ES7148 | EVEREST | 2.5x2.5 QFN-12 | 顺芯低功耗音频CODEC |
| ES7149 | EVEREST | 2.5x2.5 QFN-12 | 顺芯低功耗音频CODEC |
| ES7154 | EVEREST | SOP-14 | 顺芯低功耗音频CODEC |
| ES7210 | EVEREST | 4x4 QFN-32 | 顺芯低功耗音频CODEC |
| ES7241 | EVEREST | 3x3 QFN-16 | 顺芯低功耗音频CODEC |
| ES7242 | EVEREST | 4x4 QFN-24 | 顺芯低功耗音频CODEC |
| ES7243 | EVEREST | 3x3 QFN-20 | 顺芯低功耗音频CODEC |
| ES8156 | EVEREST | 3x3 QFN-20 | 顺芯低功耗音频CODEC |
| ES8218 | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8311 | EVEREST | 3x3 QFN-20 | 顺芯低功耗音频CODEC |
| ES8312 | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8316 | EVEREST | 4x4 QFN-32 | 顺芯低功耗音频CODEC |
| ES8323S | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8374 | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8388 | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8388S | EVEREST | 4x4 QFN-28 | 顺芯低功耗音频CODEC |
| ES8396 | EVEREST | 6x6 QFN-48 | 顺芯低功耗音频CODEC |
| ES8374 | EVEREST | QFN28 | 顺芯低功耗音频CODEC |
| ES8323S | EVEREST | QFN28 | 顺芯低功耗音频CODEC |
| ES8316 | EVEREST | QFN32 | 顺芯低功耗音频CODEC |
| ES8388 | EVEREST | QFN28 | 顺芯低功耗音频CODEC |
部分产品可提供免费样本！如需更多资料，请联系我！
